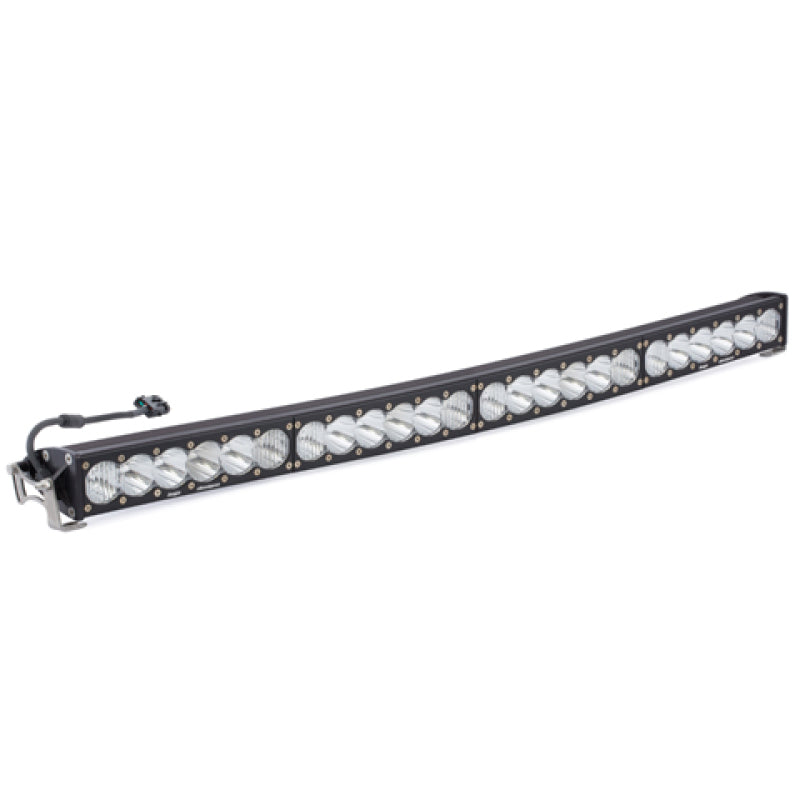

Baja Designs OnX6 Arc Series Driving Combo Pattern 40in LED Light Bar | 524003

BAJ-524003

Part Number: 524003

The NEW OnX6+ Arc Series is the perfect combination of performance and aesthetics. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar. At an impressive 39,220 lumens, the brightest just got up to 69% brighter.  The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

Specifications:
Lumens: (High) 39,220 (Low) 32,760 Utilizing 18 Cree LEDs
Wattage/Amps: (High) 340W / 26.8A (Low) 284W / 22.4A
Dimensions: 40" x 4.29" x 2.69"
Weight: 11.45 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

Includes:

  • OnX6+ Arc 40” LED Light Bar
  • Mounting Brackets
  • Hi-Low Dongle
  • Please note that this light does NOT include a harness and the applicable harness to this light is 640119
