Baja Designs OnX6+ 2017-2020 Ford Raptor Lower Grille LED Kit | 447557

BAJ-447557

5 items left

Part Number: 447557

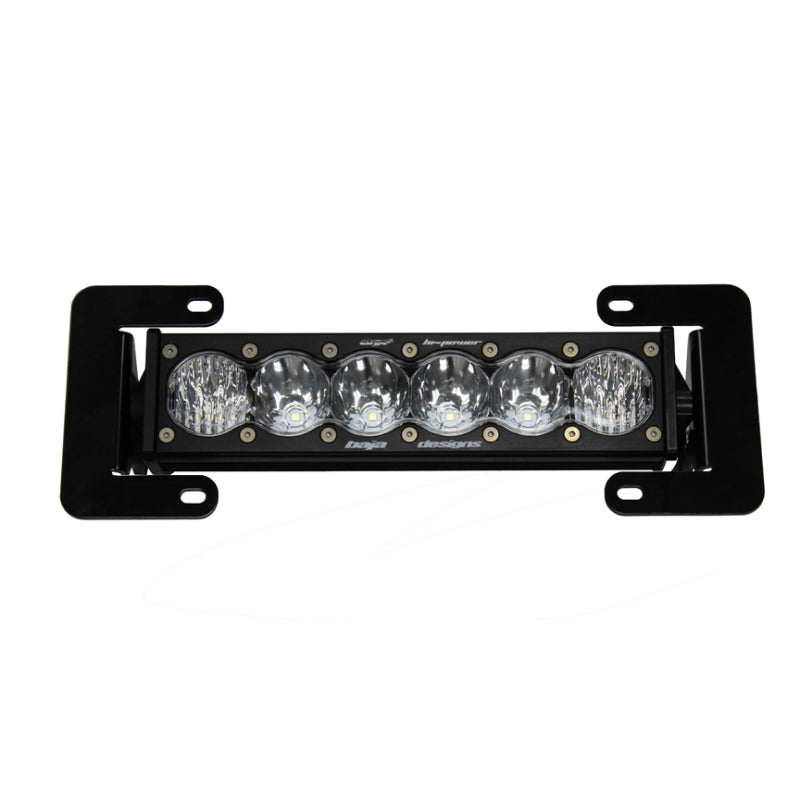

Baja Designs' 2017-2020 Ford Raptor 10" OnX6+ lower grille kit was designed with both functionality and visual appeal in mind. The kit is a quick and easy installed with minimal modifications required. Please note that this kit includes a 10" OnX6+ in a driving combo beam pattern and the brackets will not accept any other light. The included harness will allow you to easily tap your lights into the factory up-fitter switches.

Note: you will need to remove your front factory license plate

Specifications:
Lumens:  (High) 12,460 (Low) 9,230 Utilizing 6 LEDs
Wattage/Amps: (High) 108W / 8.4A (Low) 80W / 5.7A
Dimensions: 10" x 4.29" x 2.69"
Weight: 4.25 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

Includes:

  • 2017-2020 Raptor Mounting Brackets
  • Required Hardware
  • 10" OnX6+ Driving/Combo
  • Wiring Harness

WARNING: Cancer & Reproductive Harm www.p65warnings.ca.gov
